QS 3000W 48V/60V Electric Bike Conversion Kits with Controller and LCD Display
QS205 3000W 50H Electric Bicycle Conversion Kits
The parts list as follows,
1pc x QS205 3000W (50H) Spoke Hub Motor
1pc x Twist Hall Throttle
1pc x Standard BLDC Controller

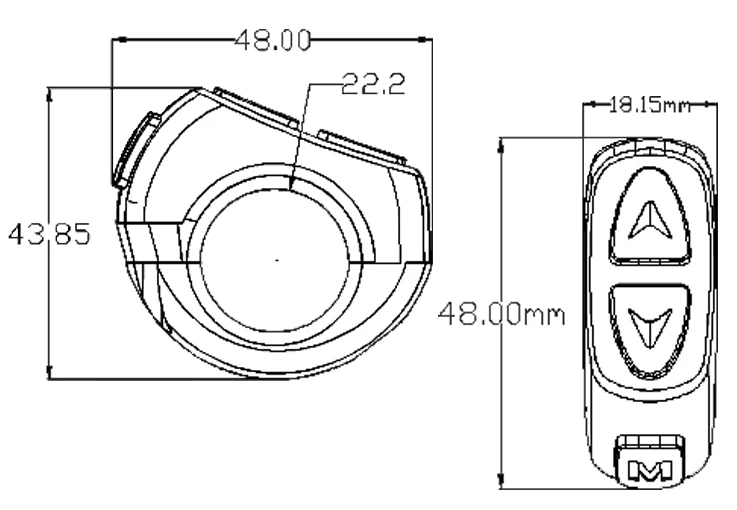

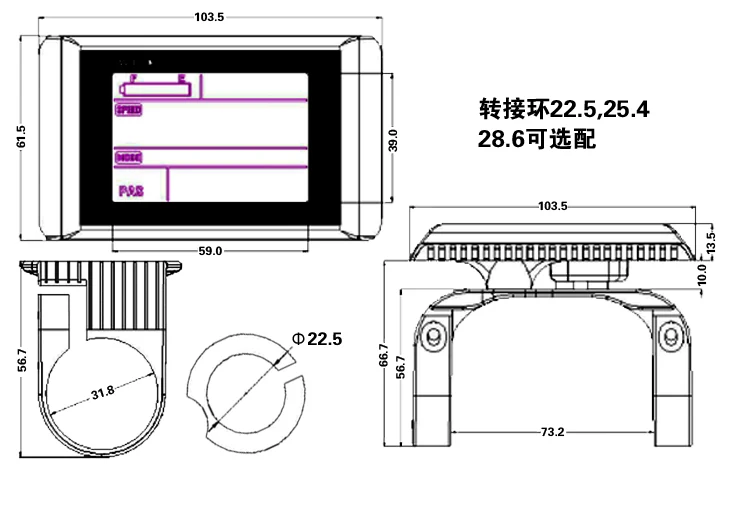

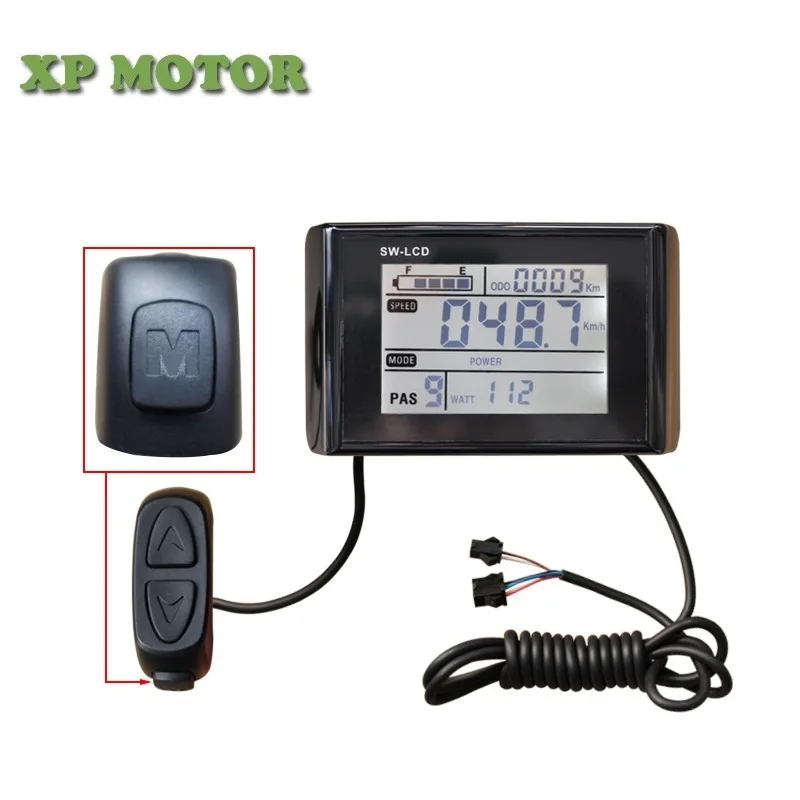

1pc x LCD Speed Display
1. QS205 3000W E-Bike Hub Motor 50H V2 Type
NEW 205 Spoke Hub Motor(50H) 3000W V2 For Electric Bicycle
The 205 Spoke Hub Motor specially designed for Electric bicycle or Electric motorcycle, drum brake or disc brake type can be optional, speed can be customized from 25-70KMPH.
Motor Main Specification:
1. Motor Type: BLDC Hub Motor with Permanent Magnet
2. Motor design: Double axle out
3. Spoke hole: 3.4mm x 36pcs
4. Matching Rim:16inch-26inch
5. Magnet Height: 50MM
6. Pole Pairs: 23 Pairs
7. Rated Power: 3000W
8. Peak Power: 5000W
9. Rated Voltage: 48V/60V
11. Max No-load RPM: 950RPM
12. Max Torque: 150N.M
13. Max Efficiency: 88%
14. Continious current:45A
15. Max current:80A
16. Brake type: Disc brake
17. Rear Fork width for installation: 150mm
18. Winding Core material: Aluminium
19. Cross Section of Phase wire: 10 mm2
20. Hall sensor phasing angle: 120 degree
21. Temperature Sensor: Optional
22. Max. Working Temperature: 70 degree, Peak 120 degree
23. Waterproof Grade: IP54
24. Color: Black
25. N.W./ G..W. : 14kgs / 15kgs
26. Package Size: 34*34*33CM
2. 3000W 48V/60V BLDC Controller with LCD Display
3. Twist Hall Throttle
Hall 0-5V Twist Grip for normal electric bike or electric scooter
Wires instuction: RED to +5V BLACK to GND WHITE to SIGNAL WIRE
